Find your bearing easily
Single Row Deep Groove Ball Bearings
Bearing No.: 6212-2Z P63
Type
Clearance
0,023-0,043Tolerance class

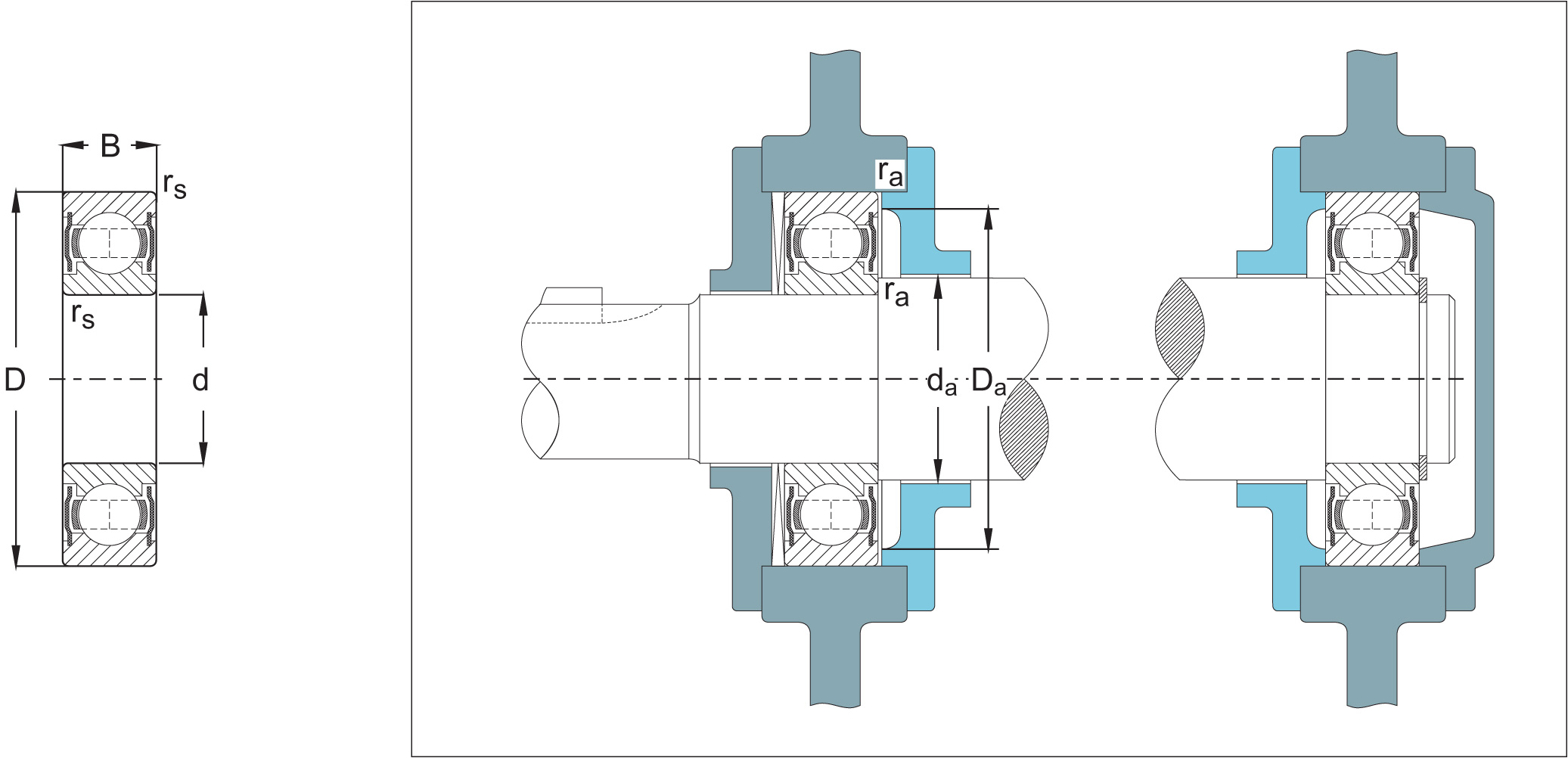

Boundry dimensions (mm)
Mounting dimensions (mm)
Weight
d | = | 60 -0,012 |
D | = | 110 -0,013 |
B | = | 22 -0,150 |
rs min | = | 1,5 |
Mounting dimensions (mm)
da min | = | 67 |
da max | = | 0 |
Da max | = | 101 |
ra max | = | 0 |
Weight
0,771 | kg |
Basic Load Rating (kN) | Limiting Speeding (min -1) | Radial Runout (mm) | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
